Description

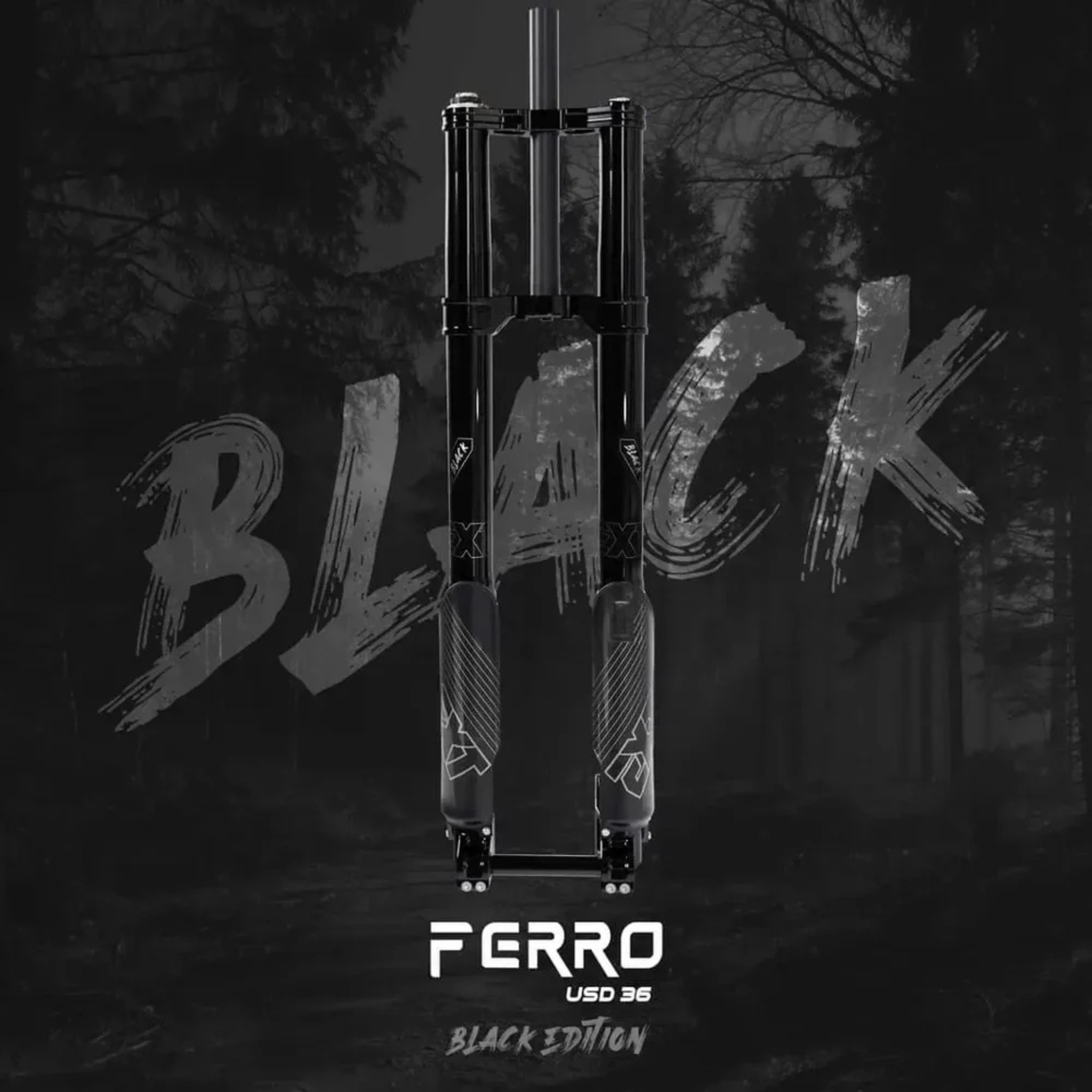

EXT Surron Light Bee Black Edition Ferro Arma MX Package with DLC Coated Stanchions

This limited-edition EXT Ferro Arma MX Package brings the highest quality suspension upgrade to the Surron Light Bee X, Talaria Sting, and compatible models. With DLC (Diamond-Like Coating) coated stanchions, it maximizes durability, performance, and control for any off-road or motocross challenge.

Core Arma MX Features:

  • 4-Way Adjustable: Control Low-Speed Compression (LSC), High-Speed Compression (HSC), Low-Speed Rebound (LSR), and Hydraulic Bottom-Out Control (HBC) for precise tuning.
  • High-Flow Components: 29mm main piston, 24mm valve piston, and a 14mm shaft, allowing for better handling of side loads.
  • Low-Friction Design: Ultra-low friction coating, low hysteresis, and a rebound circuit that separates bump and rebound flow for superior response and sensitivity.
  • Adjustable HBC: Prevents bottom-out while allowing softer springs.
  • Custom Setup: Tailored hydraulic configuration for individual bike and rider needs.
  • Spring Options: Available in 400-650lb options (lower available on request).

Ferro MX Fork Features:

  • Advanced HS3 System: Hybrid air spring with twin positive air chambers for mid-stroke support, dynamic sag, and bottom-out protection.
  • Dual Crown Structure: 7075 aluminum construction for maximum stiffness and compatibility with stock fender design.
  • Enhanced Cartridge: High-volume, low-friction damper cartridge with HDRV (High Dynamic Response Valve) and high-flow piston for excellent dampening.
  • Sliding Bushings: Uses a DU guiding system and EXT oil for minimal stiction, combined with Continuously Guided Bushing (CGB) system for optimal stiffness and guidance.
  • Twin Hexagonal Axle: Ensures perfect wheel alignment with maximum torsional rigidity.

Spring Guide

Rider Weight

Spring

Up to 140 400
140 to 180 450
180-210 500
210-240 550
240+ 600
Tech Specs

Fork Offset: 44mm
Travel: 200mm
Compatible with Brakes: 200mm post-mount brakes
Weight: 4000g

Fitment

Surron Light Bee X
Talaria Sting
E-Ride Pro SS 2.0
