Description

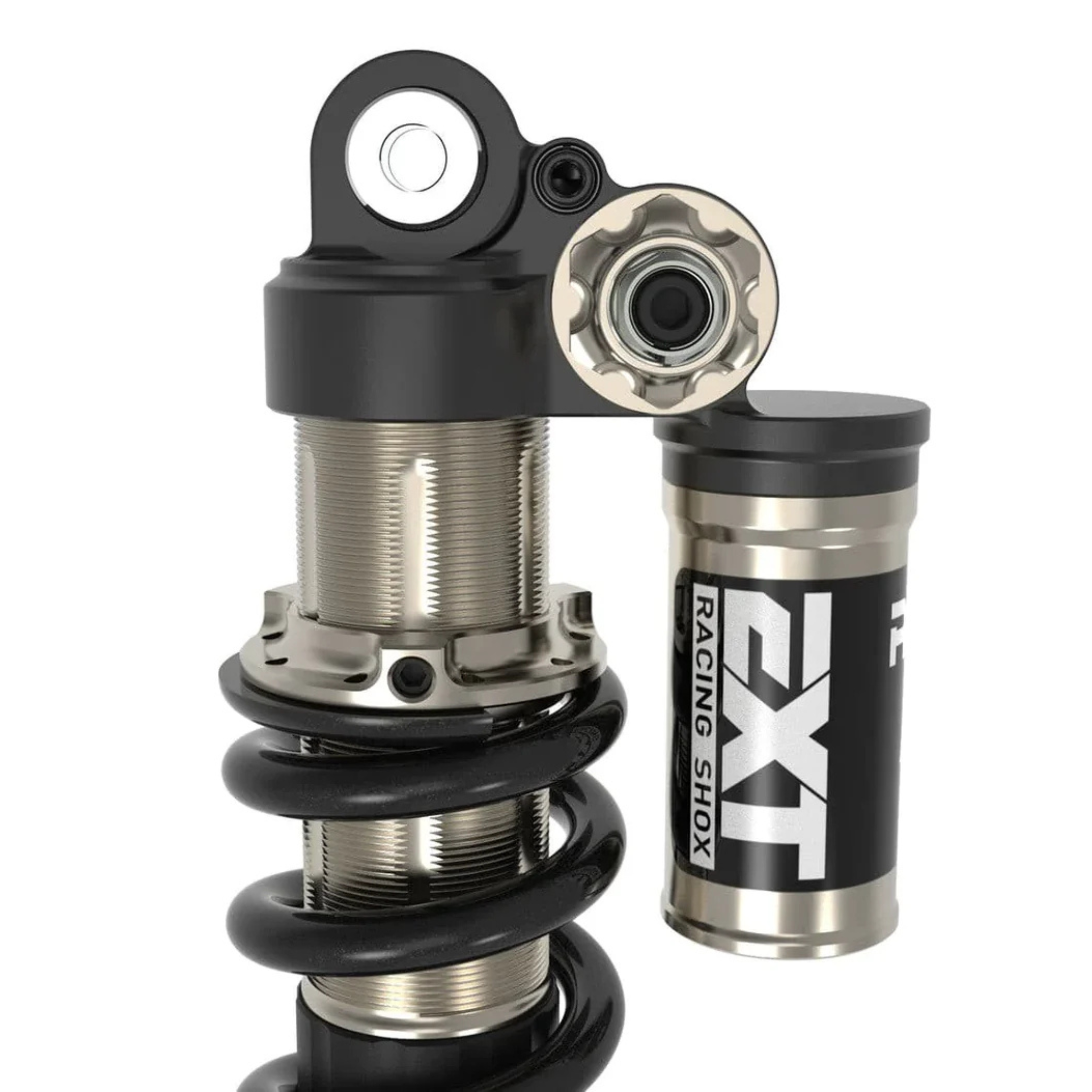

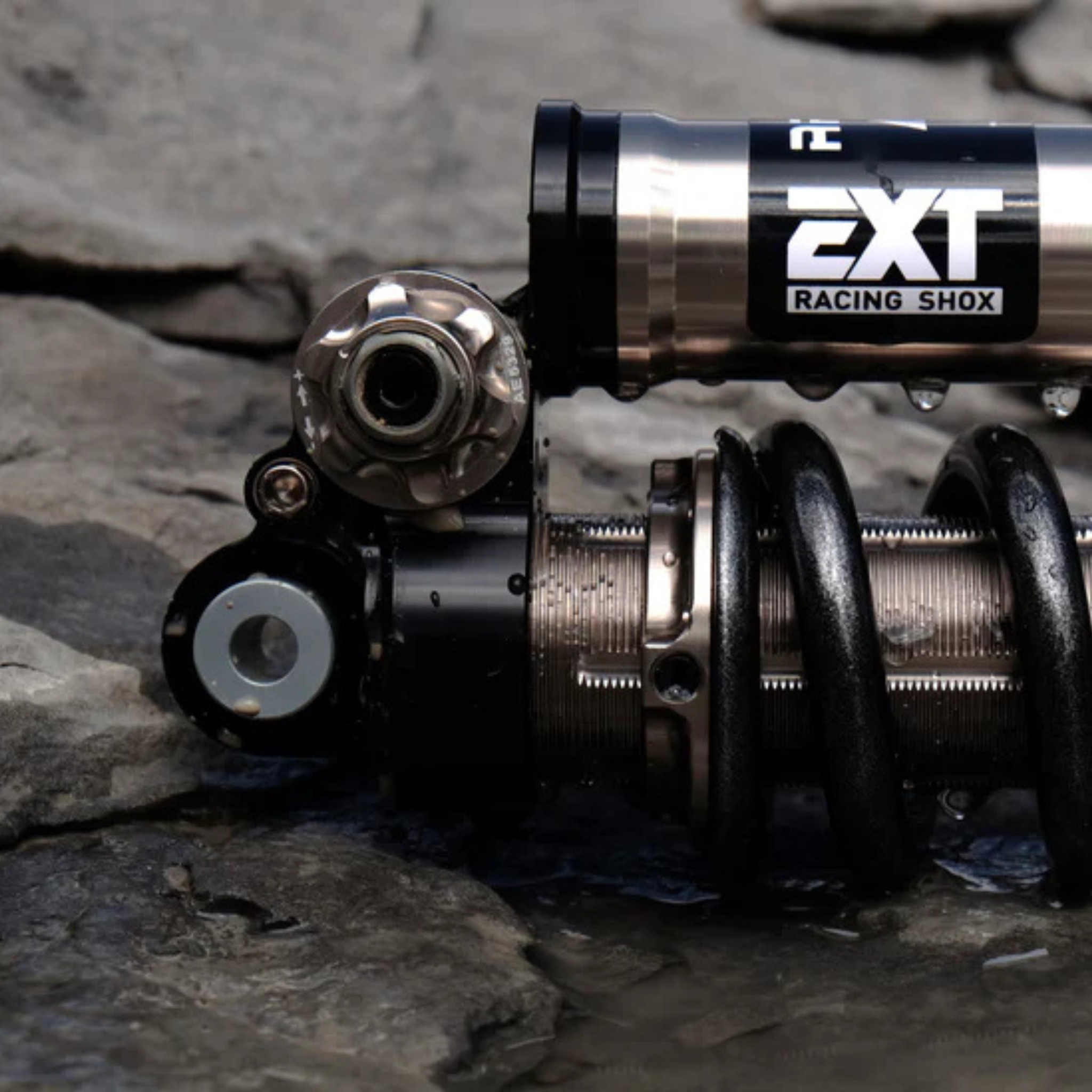

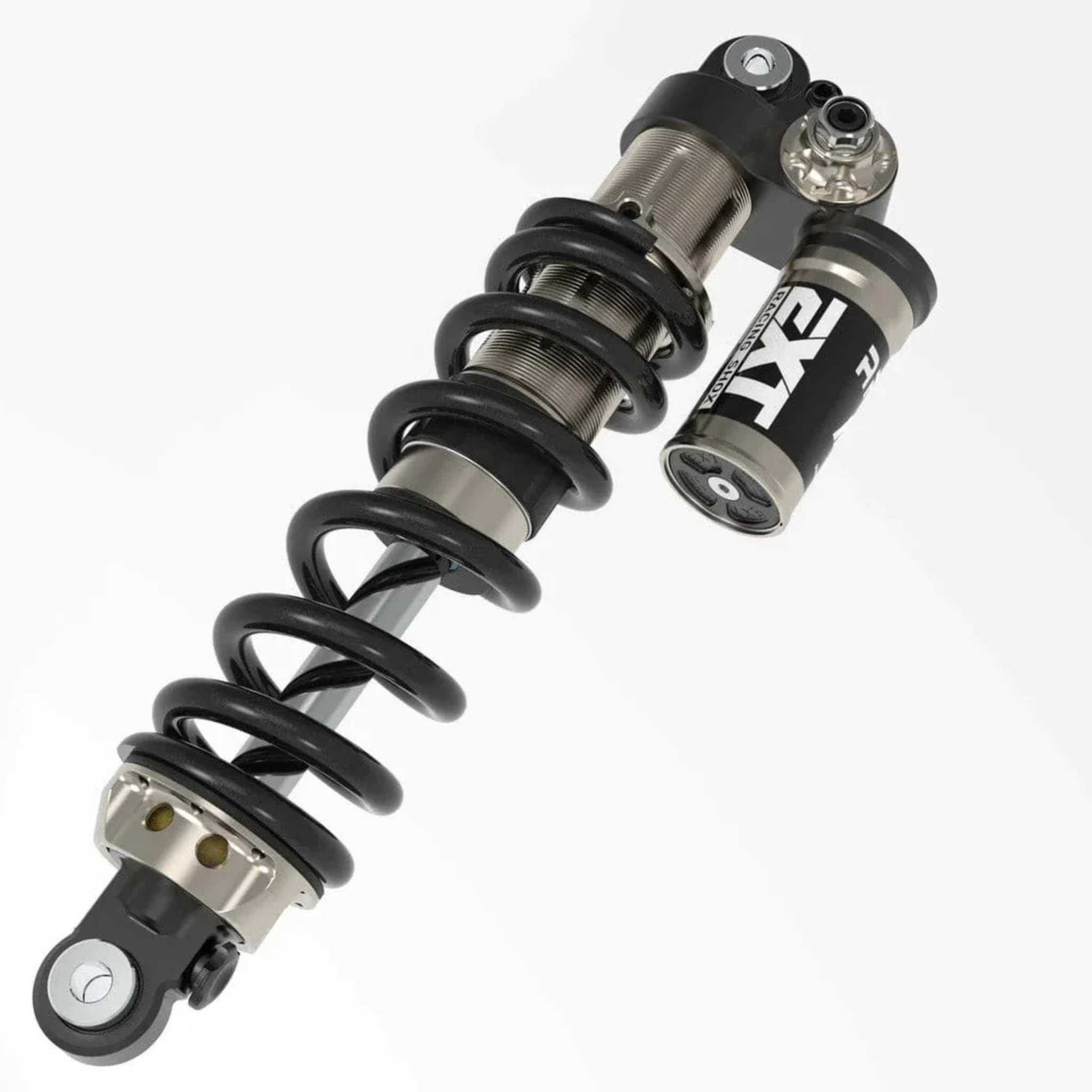

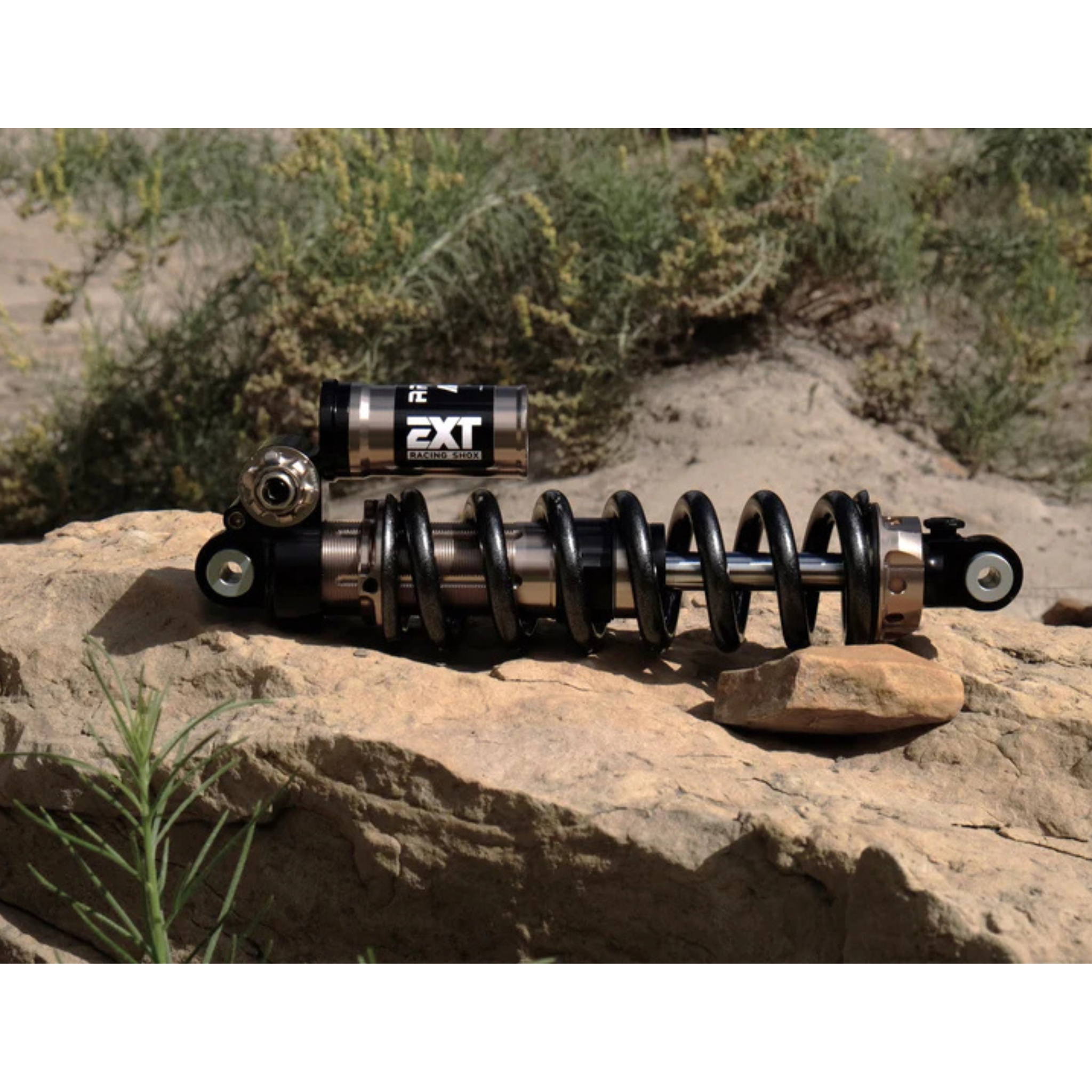

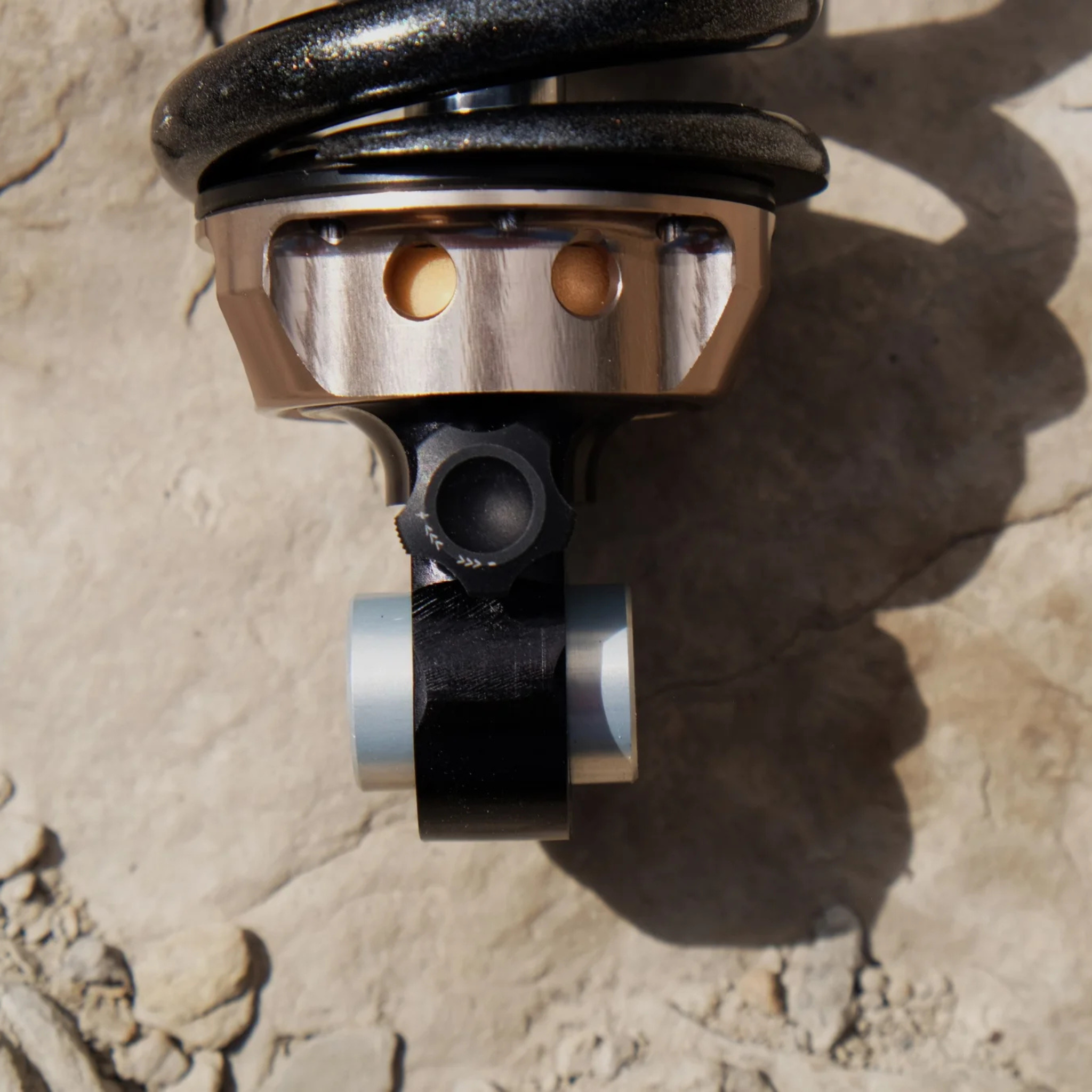

The Arma MX is a direct bolt-on replacement for the Sur-Ron Light Bee X and Talaria Sting. No additional Hardware is needed; simply bolt on and go. EXT-USA will pre-tune the shock based on the information you provide.

Features:

  • 4-way adjustable: LSC-HSC-LSR-HBC (Hydraulic Bottom-Out Control)
  • High flow 29 mm main piston
  • 24 mm valve piston
  • 14 mm shaft (50% larger than most other coils on the market to help deal with large side loading events)
  • Engineered rebound circuit to separate bump and rebound oil flow – ultra-low-friction coating
  • User-adjustable HBC technology
  • Very low reservoir pressure for maximum sensitivity  and low cavitation(55 PSI)
  • Full custom hydraulic setup that is bike and rider-specific for each shock
  • Very low hysteresis for high dynamic response
  • High turbulent flow for progressive dampening and mid-stroke support
  • Low friction seal
  • Thinner bottom-out bumper and debris-clearing washer
  • New low-profile rebound knob for easy spring swap
  • Included with 1 lightweight spring available in 400lb, 450lb, 500lb, 550lb or 600lbs (Lower options may be available upon request)
  • Comes with Sur-Ron specific mounting hardware for easy bolt-in installation.

*This is a special edition shock that will be built in limited runs.

Spring Guide

Rider Weight

Spring

Up to 140 400
140 to 180 450
180-210 500
210-240 550
240+ 600

Note: This table is a general guide. For firmer or softer preference select a spring weight above or below.
Feel free to contact us with questions.

Warning: Please refer to the Sur-Ron guidance regarding maximum weight limit for the bike.

Fitment

Surron Light Bee X
Talaria Sting
